PRODUCT INFORMATION
Drill Ø / total length / work length
1.0 / 34 / 12
| Steel (N/mm²) < 800 | ideally suited |
| Steel (N/mm²) < 1000 | suitable |
| Aluminium | suitable |
| Non-ferrous metal (Cu, Ni, Ns, Cn) | suitable |
| Soft wood | suitable |
| non-coated boards | suitable |
| Acrylic glass | suitable |
| Plastic | suitable |
| Adapter | Round shaft |
Additional information

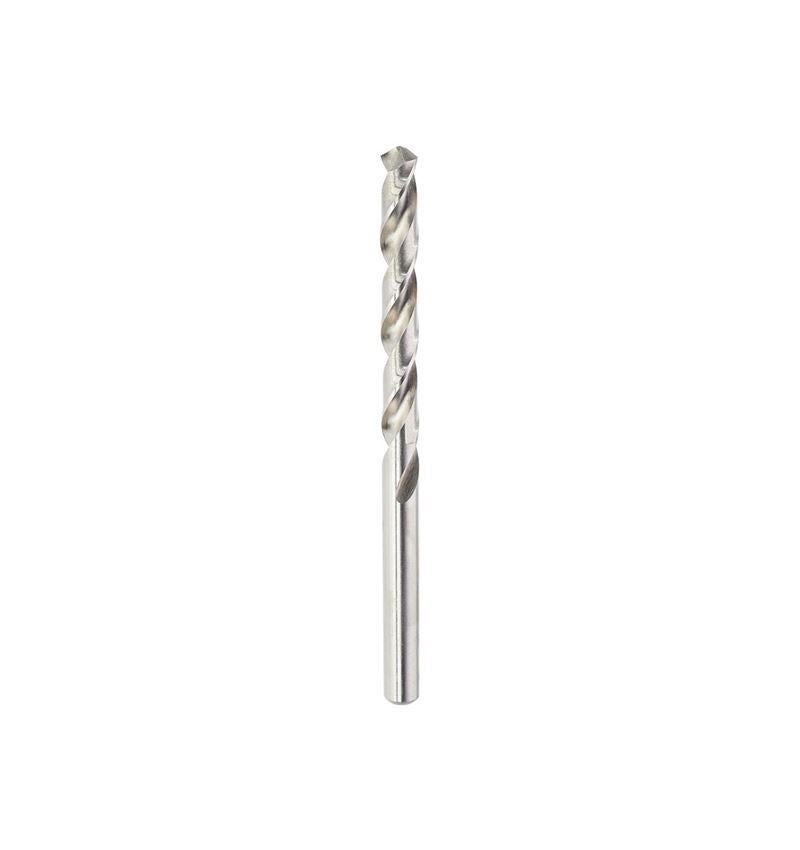

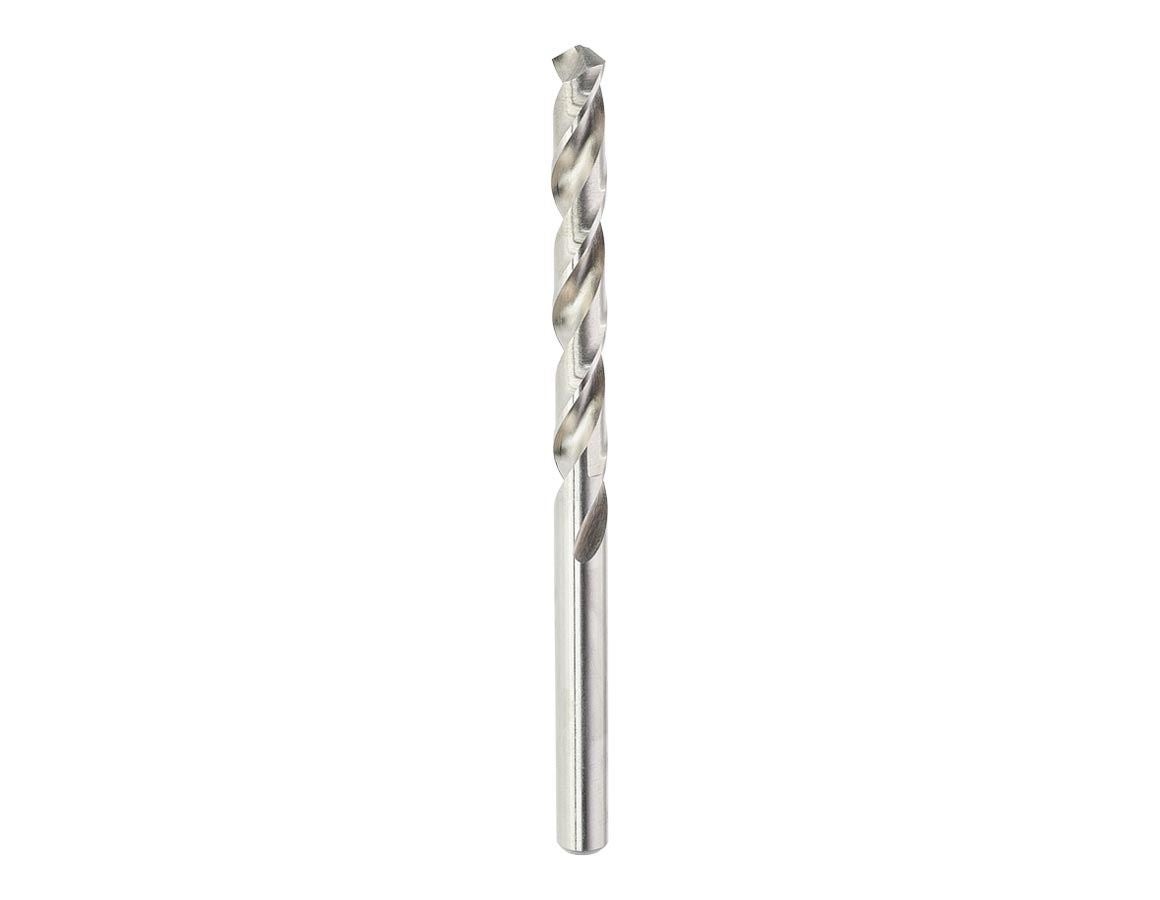

e.s. Metal spiral drill
When drilling it is extremely important to use the right tools because each workpiece requires the right drill. The service life and the drilling results depend on the material and the quality of the drill. This is why we supply HSS drills with great break-resistance and extreme concentricity for various application purposes. Check your use and then select the correct drill type. In this way you always receive an optimum drill result.
High precision
The elaborate manufacturing process ensures excellent concentricity and a long service life.
Cross-cut
Thanks to its 118° cross-cut, the drill bit's tip can be precisely centred during pilot hole drilling. This design enables efficient heat dissipation and also reduces the required feed force.

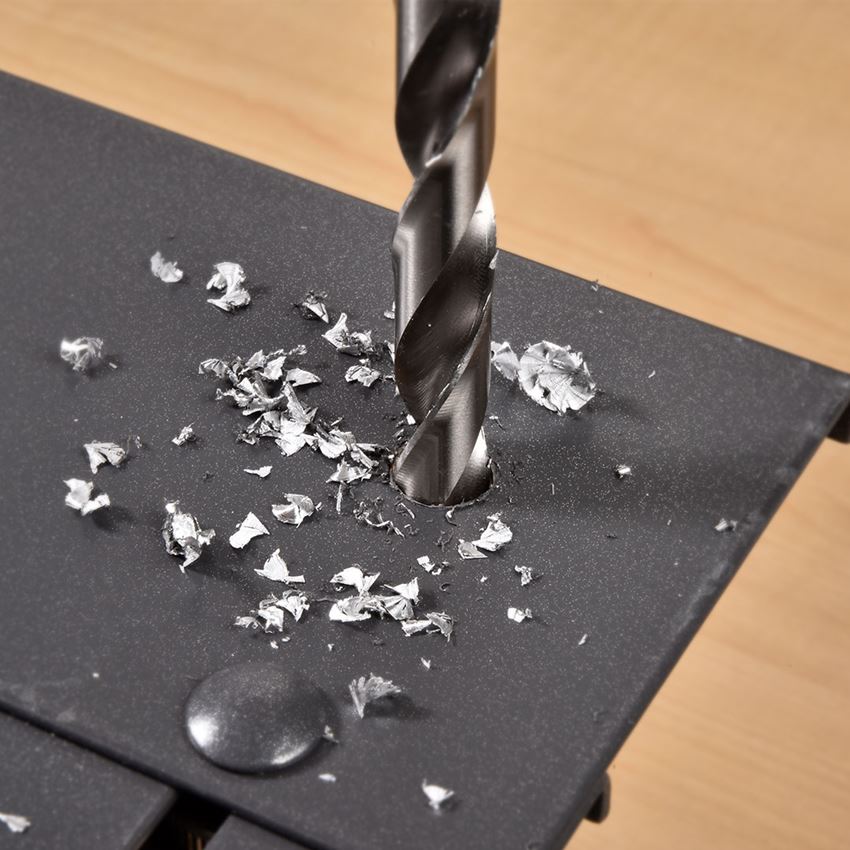

Predominantly used in stationary drilling Machines for drilling in metal and other materials.
