PRODUCT INFORMATION
- The 135° crosswise sanding ensures safe drilling and reduces process forces
- 5 % cobalt alloy. It stands out thanks to reliable heat resistance in precious metals and constant chip removal
| Steel (N/mm²) < 800 | ideally suited |
| Steel (N/mm²) < 1000 | ideally suited |
| Aluminium | very suitable |
| Non-ferrous metal (Cu, Ni, Ns, Cn) | suitable |
| Stainless steel | ideally suited |
| Soft wood | suitable |
| non-coated boards | suitable |
| Acrylic glass | suitable |
| Plastic | suitable |
| Adapter | Round shaft |
Additional information
e.s. Metal spiral drill

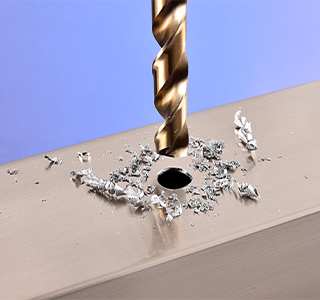

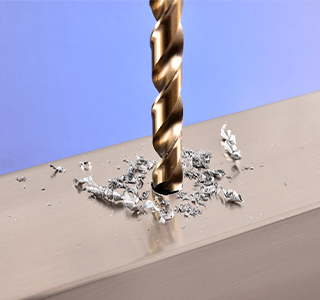

When drilling it is extremely important to use the right tools because each workpiece requires the right drill. The service life and the drilling results depend on the material and the quality of the drill. This is why we supply HSS drills with great break-resistance and extreme concentricity for various application purposes. Check your use and then select the correct drill type. In this way you always receive an optimum drill result.

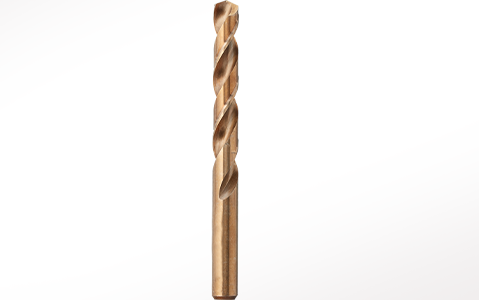

5 % cobalt alloy
The high-performance drill with a 5 % cobalt alloy achieves high operating times. It stands out thanks to reliable heat resistance in precious metals.

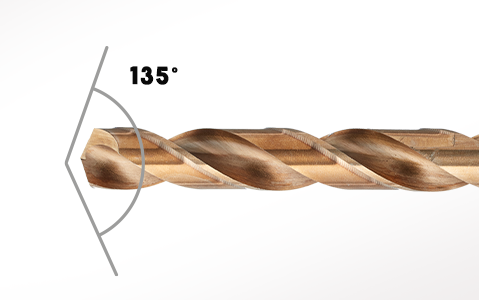

Flatt drill tip
The flatter 135° split point of the drill tip according to DIN 1412 C allows very fast drilling progress without great force and a constant discharge of chips.
Split point
Ideal for materials that are difficult to machine such as V2A and V4A steel etc.
