PRODUCT INFORMATION
| Steel (N/mm²) < 800 | ideally suited |
| Aluminium | ideally suited |
| Non-ferrous metal (Cu, Ni, Ns, Cn) | ideally suited |
| Soft wood | suitable |
| Plastic | very suitable |
| Adapter | Triangular shaft |
Additional information
REVOLUTIONARY TENSION SPACE GEOMETRY
Specially developed machining parameters, like the angle of rake, transition radius and the extra wide chip flute ensure optimum chip and heat discharge thereby allowing very high wear resistance. Also, the new geometry counters material welding and reduces the sinking forces enormously.

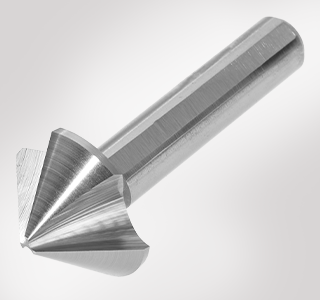

OPTIMISED VARIABLE BACK BEVEL
The specially developed variable back bevel ensures a very smooth sinking process. This generates an optimum surface quality and guarantees the best sinking results.
Up to 60 % longer service life

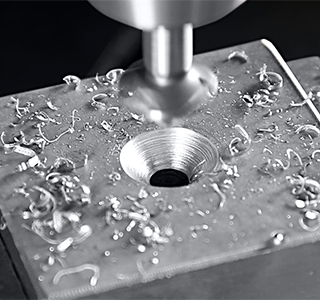

Stands out thanks to its best performance for applications in almost all materials. It easily creates an optimum sink pattern and stands out thanks to the ideal chip removal. This extremely quiet running countersink carries out its work 30 % faster than conventional sinks but still requires much less feed force.
Industrial quality made in Germany

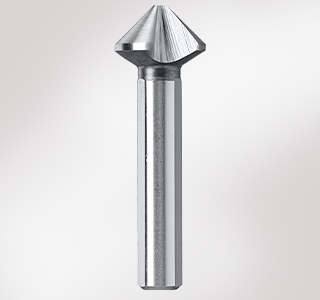

3-SURFACE SHAFT
Prevents the sink slipping into the chuck making it ideal for use in hand drills.
