PRODUCT INFORMATION
- Metal drill chuck
- Belt hook
- Magnetic bit holder
- 18.0 V Li-Ion battery 2.0 Ah
- 18.0 V Li-Ion battery 5.2 Ah
- 18.0 V fast battery charger SML 50
- STRAUSSbox 145 midi
| Cordless drill screwdriver | Cordless hammer drill screwdriver L |
| STRAUSSbox 145 midi (39,6 x 29,6 x 14,5 cm) | supplied with tools |
Additional information

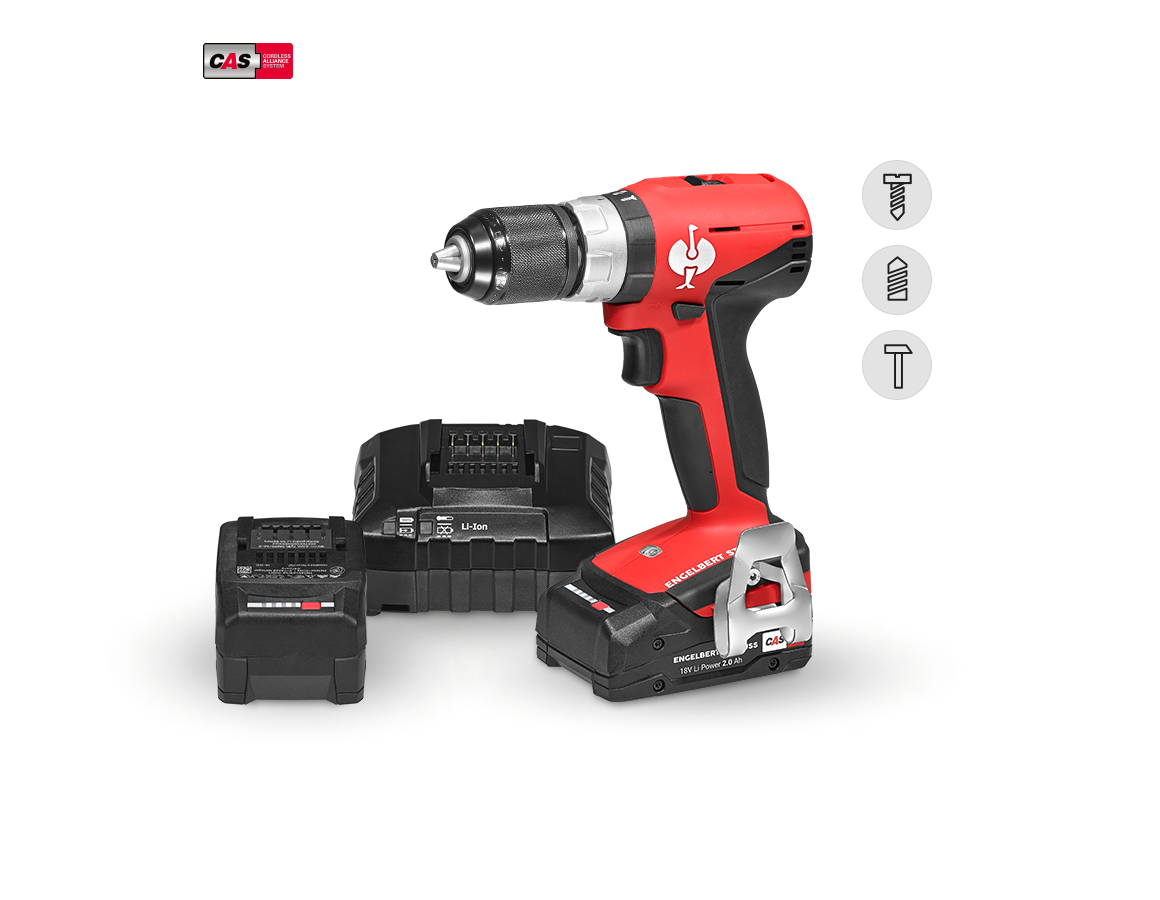

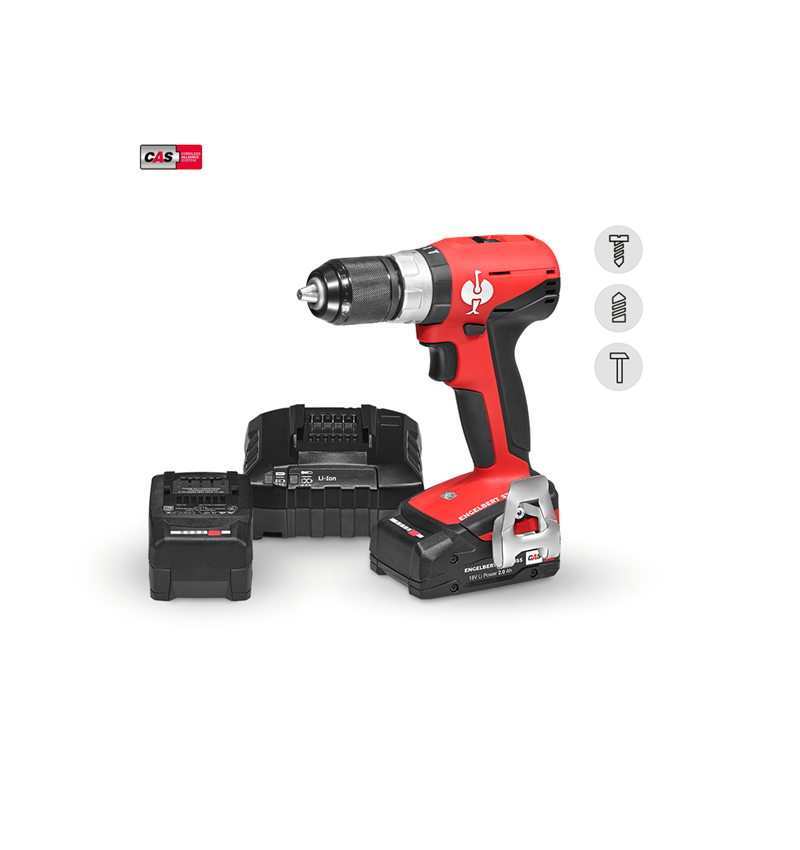

18.0 V cordless hammer drill screwdriver L
THE POWERFUL ONE
Drilling and screwing work in wood, metal and masonry.
WOOD
Borehole up to 32 mm in soft wood
STEEL
Borehole up to 13 mm in steel
MASONRY
Impact function for drilling up to 10 mm in masonry
Technical data:
- Battery voltage: 18.0 V
- Max. torque soft: 25 Nm
- Max. torque hard: 60 Nm
- Adjustable torque: 0.5 - 5 Nm
- Drilling Ø in masonry: 10 mm
- Drilling Ø in steel: 13 mm
- Drilling Ø in soft wood: 32 mm
- Idle speeds: 0 - 550 / 0 - 1850 /min
- Chuck span: 1.5 - 13 mm
- Weight (with battery pack 2.0 Ah): approx. 1.4 kg
Vibration:
- Drilling metal: 2.3 m/s²
- Measurement uncertainty: K 1.5 m/s²
Noise emissions:
- Sound pressure level: 72 dB(A)
- Sound performance (LwA): 83 dB(A)
- Measurement uncertainty: K 3 dB(A)
POWERFUL
Powerful 2-gear transmission with 0-550 rpm
or 0-1850 rpm and up to 60 Nm torque
SHINING
Integrated LED light with a post-light function
STURDY
High-quality metal drill chuck
DURABLE
Brushless motor for long life span
COMPACT
Extremely compact and ergonomic form for perfect handling
18.0 V LI-ION BATTERY 2.0 AH
- Intelligent battery management, therefore very durable
- Permanent electronic single cell monitoring during charging
- Clear capacity display
- Almost no self-discharging
- 2.0 Ah Li-Ion battery weighing just 430 g
- Ideal for cordless screwdriver and light tasks

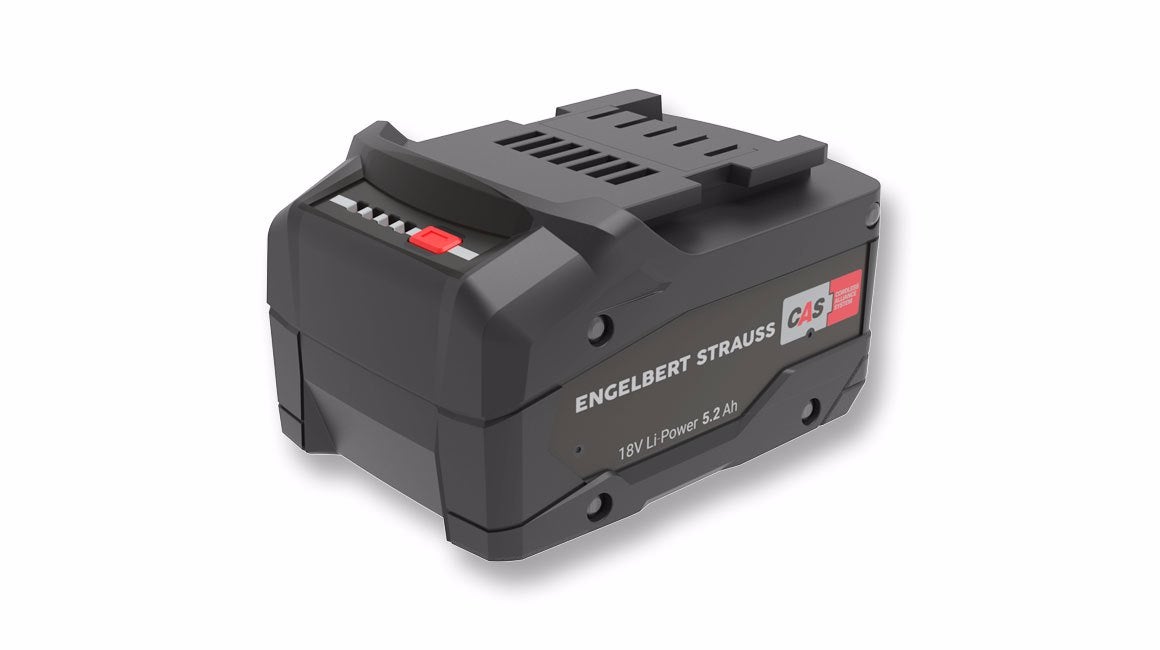

18.0 V LI-ION BATTERY 5.2 AH
- Intelligent battery management, therefore very durable
- Permanent electronic single cell monitoring during charging
- Clear capacity display
- Almost no self-discharging
- Large 5.2 Ah Li-Ion battery weighing just 695 g
- Ideal for hand-held circular saws, jigsaws or the STRAUSS cooling box Hybrid

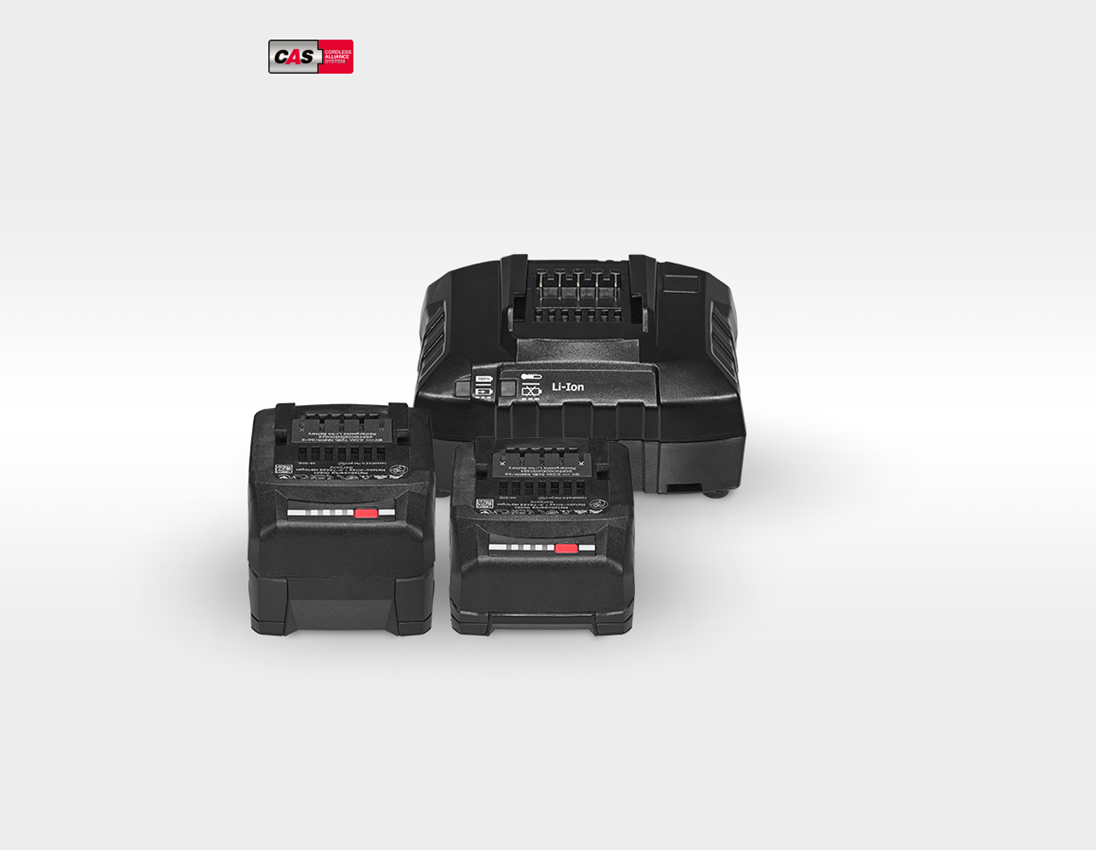

FAST CHARGER
- For charging all battery packs of CAS brands:
www.cordless-alliance-system.com - Battery voltage: 12-36 V
- Mains voltage: 220-240 V
- Mains frequency: 50-60 Hz
- Max. charging currents: 3/4 A
- Low stand-by power input
Charging time:
- 18.0 V Li-Ion battery 2.0 Ah = 40 minutes
- 18.0 V Li-Ion battery 5.2 Ah = 104 minutes
CORDLESS ALLIANCE SYSTEM
ONE BATTERY FOR EVERYTHING
CROSS-MANUFACTURER 100 % COMPATIBILITY
1 battery - 30 brands - 300 machines
More information at
www.cordless-alliance-system.com

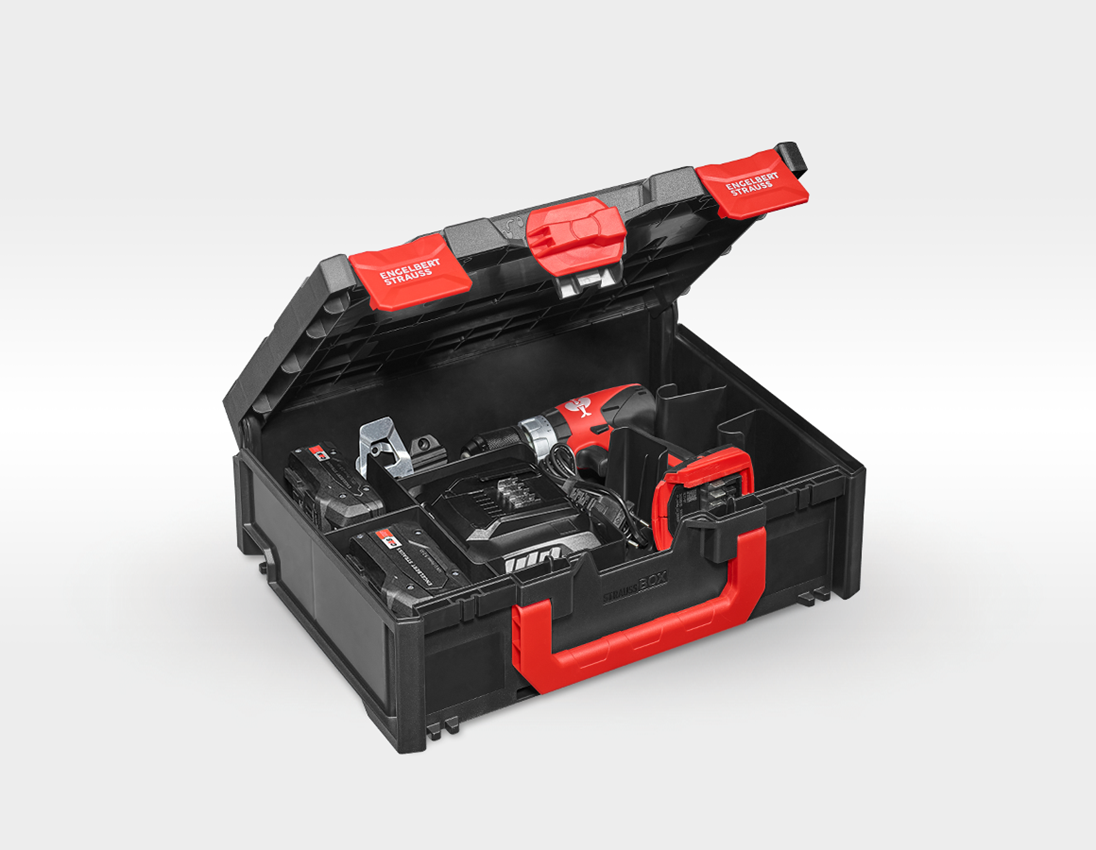

STRAUSSbox midi
SIMPLY
IN THE MIDDLE
There is no more need to dismantle half a tower to get to a certain tool - all boxes in a STRAUSSbox tower can be opened at any time.
ALWAYS A
GOOD CONNECTION
Within the system, each box can be connected with any STRAUSSbox. There are almost no limits to your creativity or individual needs.
ALWAYS A
PERFECT FIT
The identical metaBOXES and STRAUSSboxes can be combined with each other to 100 %.
WE GO ONE STEP FURTHER
Manufacturer: * BS Systems GmbH & Co. KG / * * Stanley Black & Decker Corporation / * * * Makita Corporation / * * * * Tanos GmbH
INVISIBLE SAFETY SHIELD
All STRAUSSboxes are protected against foreign bodies and spray water acc. to IP43. This means that dirt and moisture have no chance of getting to your machines, tools and accessories, because you need them to be available immediately or at any time.
LOTS OF SPACE INSIDE AND VERY TOUGH OUTSIDE
Made of high-quality and extremely break-resistant ABS, STRAUSSboxes are able to cope easily with heavy loads. They can withstand a lot, even your weight.
YOUR BOXES TRAVEL WITH YOU
Thanks to the adapter plate, your tool boxes can also be integrated into existing vehicle equipment.
