PRODUCT INFORMATION
- Made of high-quality chrome-vanadium steel.
- 1/4" - 6.3 mm
- Torque up to 90 Nm
- Length: 125 mm
- Weight: 112 g
| Drive size | 6,3 mm (1/4") 10,0 mm (3/8") 12,5 mm (1/2") |
Additional information
e.s. Ratchet wrench pro
Lower 4° regrip angle
No space? No problem. The 4º regrip angle allows easy and time-saving use of the e.s. Ratchet wrench even in very tight spaces. Thanks to the newly developed 90-teeth mechanism, the angle compared to conventional fine-tooth wrenches is reduced by 25 %.
High torque
Releases screws when others have long since given up. Despite the fine teeth with 90 teeth, the e.s. Ratchet wrench generates an enormously high torque of up to 750 Nm. This means that it lies 50 % above DIN and releases screws when others have long since given up.
Flat switch lever
Faster switching. The flat lever for setting clockwise or anticlockwise operation closes flush with the casing. This design protects against accidental switching and damage, and obstructions in tight work situations.

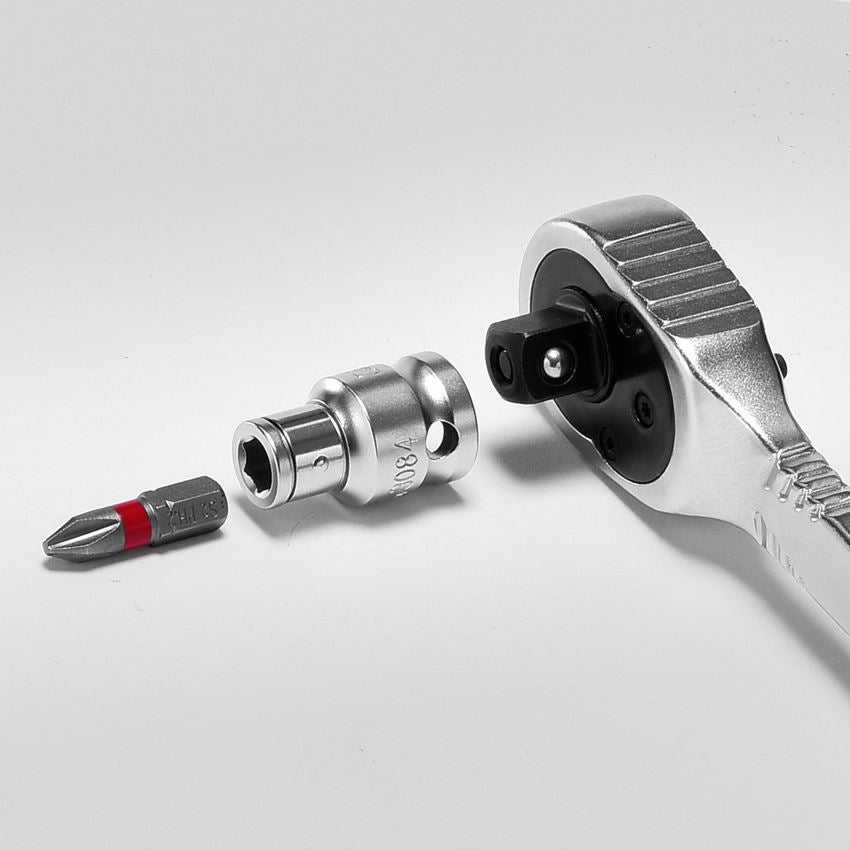

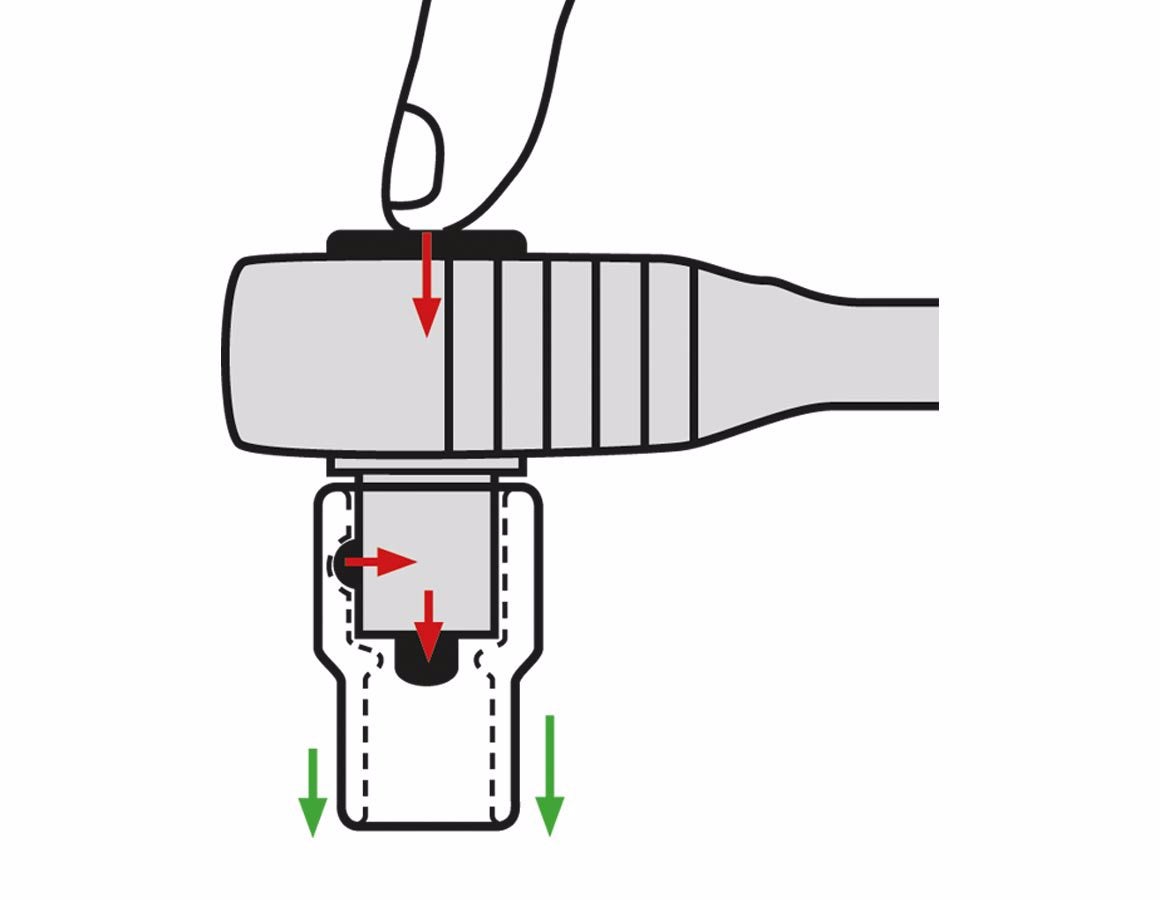

Secure push-button lock
Tight connection. Unintentional release of socket wrench inserts of adapter is a thing of the past. The secured socket wrench inserts can be removed at just the push of a button. The push button lock allows fast replacement even with oily hands.
Industrial quality made in Germany

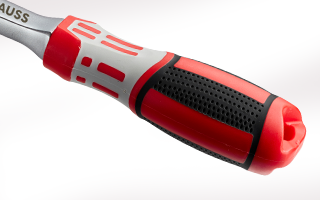

Multi-component test

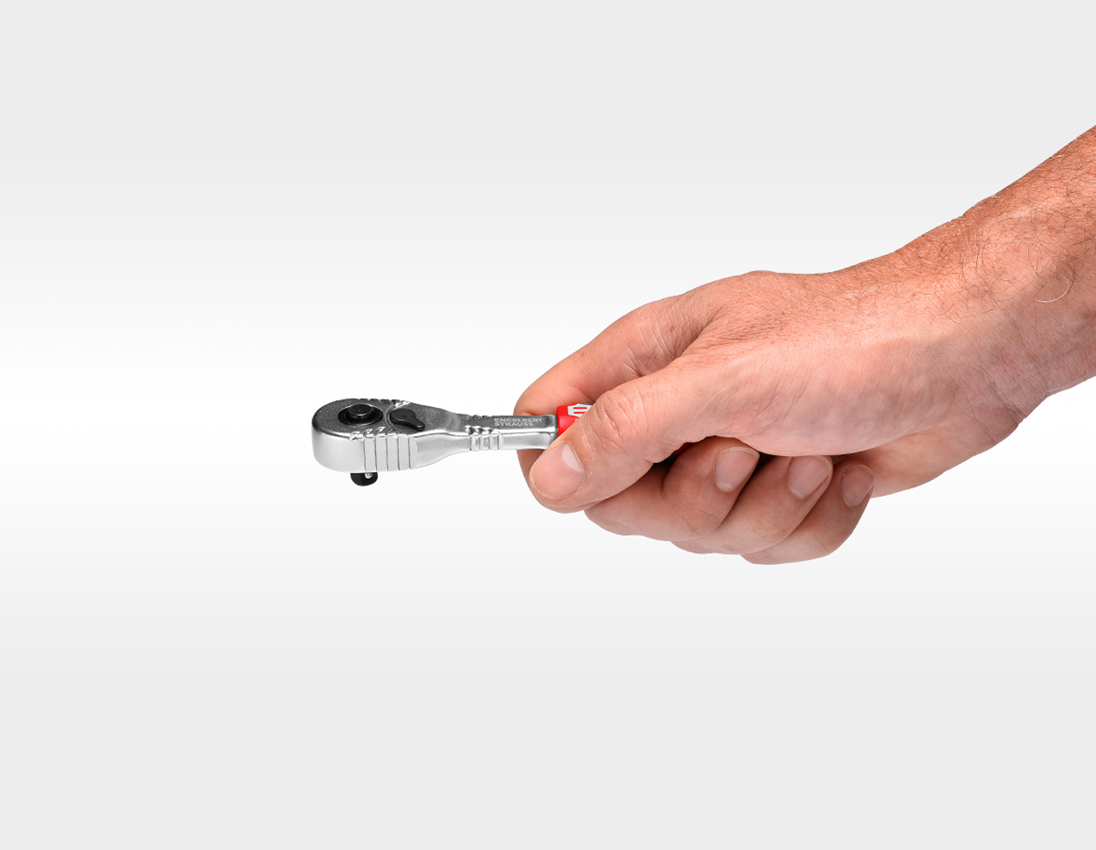

The form, which is optimally moulded to fit the hand, helps to avoid weals on the hands. Well thought-through details, like the thumb groove, and non-slip zones help support optimised force transmission without loss.
Torque test
The torque test was carried out by a neutral test institute. The test with 10 e.s. Ratchet wrench 'pro' respectively shows no deformation of limitation for a load of more than 50 % of the specified DIN values.
(I) e.s. Ratchet wrench "pro" 1/4" compared to a (II) normal 1/4" Ratchet wrench (acc. to DIN)
(I) e.s. Ratchet wrench "pro" 3/8" compared to a (II) normal 3/8" Ratchet wrench (acc. to DIN)
(I) e.s. Ratchet wrench "pro" 1/2" compared to a (II) normal 1/2" Ratchet wrench (acc. to DIN)
Lifecycle test e.s. Ratchet wrench pro
Endless work. No signs of wear were established in an extensive test comprising more than 30,000 actuations at 175 Nm.
